Dimensions
| Operating area width | 250 mm |
| Standard yokes for minimal workpiece bore diameter | 60, 100 mm |
| Optional yokes for minimal workpiece bore diameter | 40 mm |
| Dimensions (W x L x H) | 290 x 750 x 440 mm |
Performance
| Heating performance example (bearing, weight, temperature, time) | 23172 CC/W33, 220 kg, 110 °C, 20 min |
Properties
| Voltage | 400 – 460 V |
| Recommended applications |
Fans and blowers
Compressors
Roller conveyors
Bearing houses
Gear boxes
Electrical motors
Pump installations
Engines
|

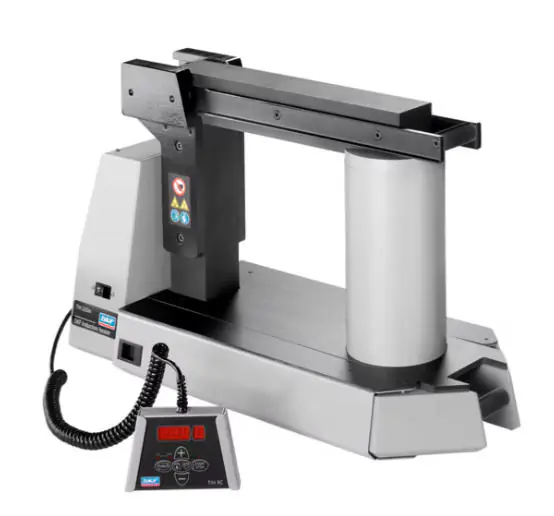

| Type | Induction heater, workshop floor |
| Series | TIH 220m |
| Heating method | Induction, low frequency |
| Suitable for mounting | Yes |
| Suitable for dismounting | No |
| Solid workpiece weight (max, mounting) | 300 kg |
| Bearing weight (max) | 300 kg |
| Workpiece bore diameter (mounting) | 40 – 600 mm |
| Workpiece outer diameter | 52 – 1100 mm |
| Power consumption (max) | 11.5 kVA |
| Workpiece width (max) | 250 mm |
| Workpiece cross section height (max) | 255 mm |
| Operating area height | 255 mm |
| Coil diameter | 140 mm |
| Main yoke type | Sliding yoke, 70 x 70 mm |
| Yoke storage | Yes, internal |
| Voltage | 400-460 V |
| Voltage frequency | 50 / 60 Hz |
| Current (max) | 25 A |
| Temperature measurement | Magnetic probe K-type |
| Number of temperature sensors | 1 |
| Demagnetisation after heating | Yes |
| Error guiding codes | Yes |
| Thermal overload protection | Yes |

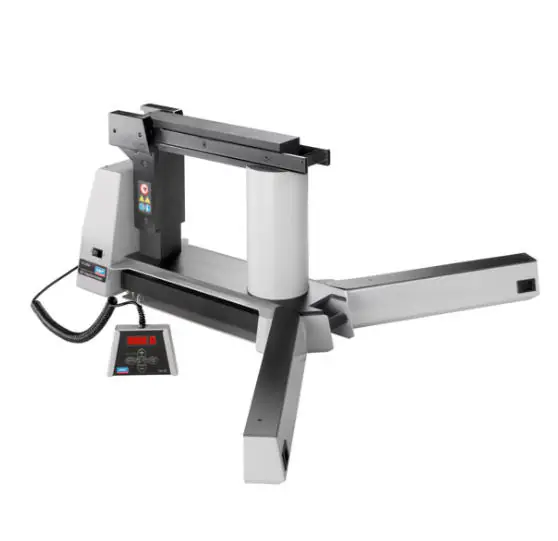

| Bearing support arms | Yes, foldable |
| Display | 7 segment LED display |
| Forced air cooling | No |
| Power setting | 50%, 100% |
| Thermometer mode | Yes |
| Time mode | Yes |
| Remote control panel (wired) | Yes, with LED display |
| Heating time control | 0 – 3600 s |
| Heating time steps | 6 s |
| Heating temperature control | 20 – 250 °C |
| Heating temperature steps | 1 °C |
| Housing material |
Steel
Glass fibre filled polyamide
|
| Colour |
Grey
Black
|
| Content | Heater, Remote control, Temperature probe (TIH P20), 2 standard yokes (TIH 220-Y67, TIH 220-Y10), 1 pair of heat resistant gloves (TMBA G11) and 1 tube of anti fretting paste (LAGF 3E/0.035) |
